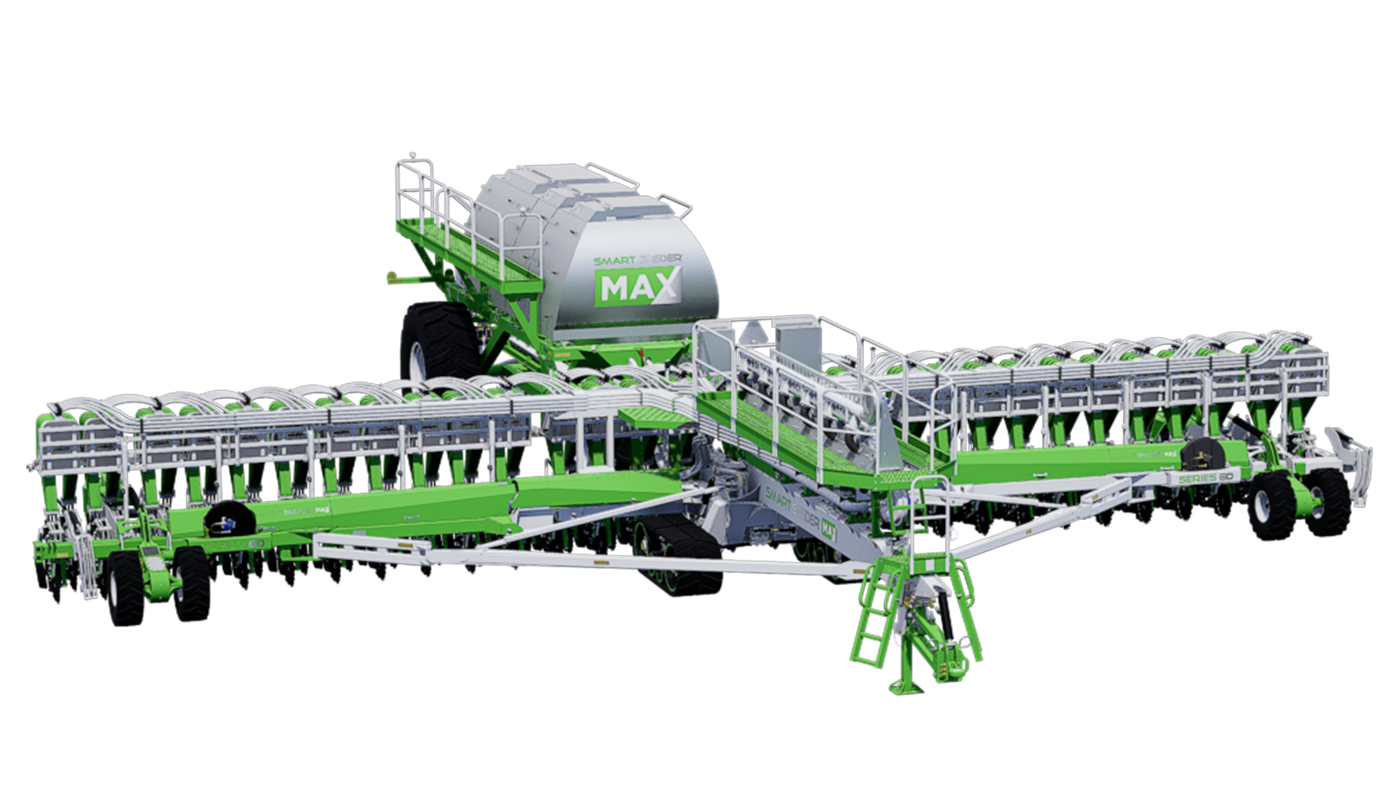

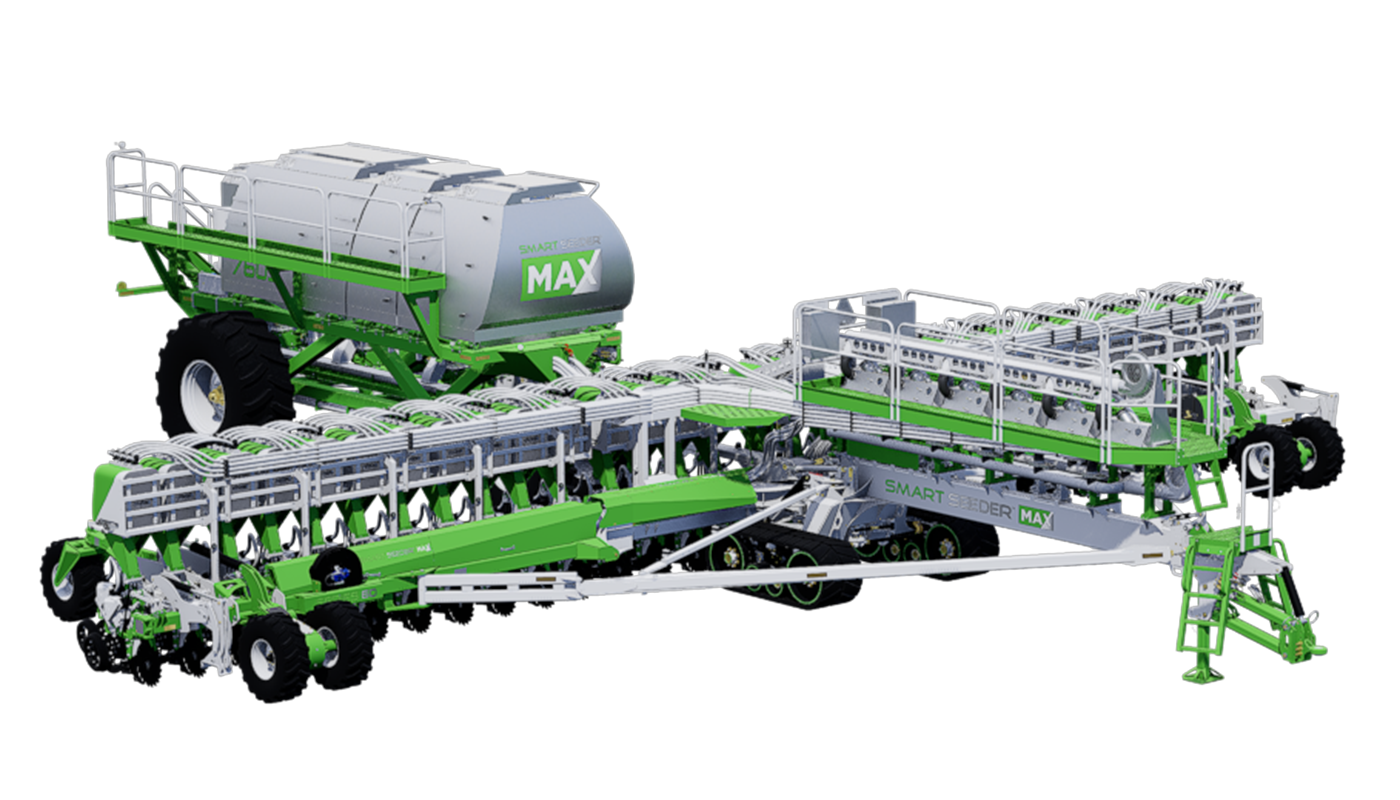

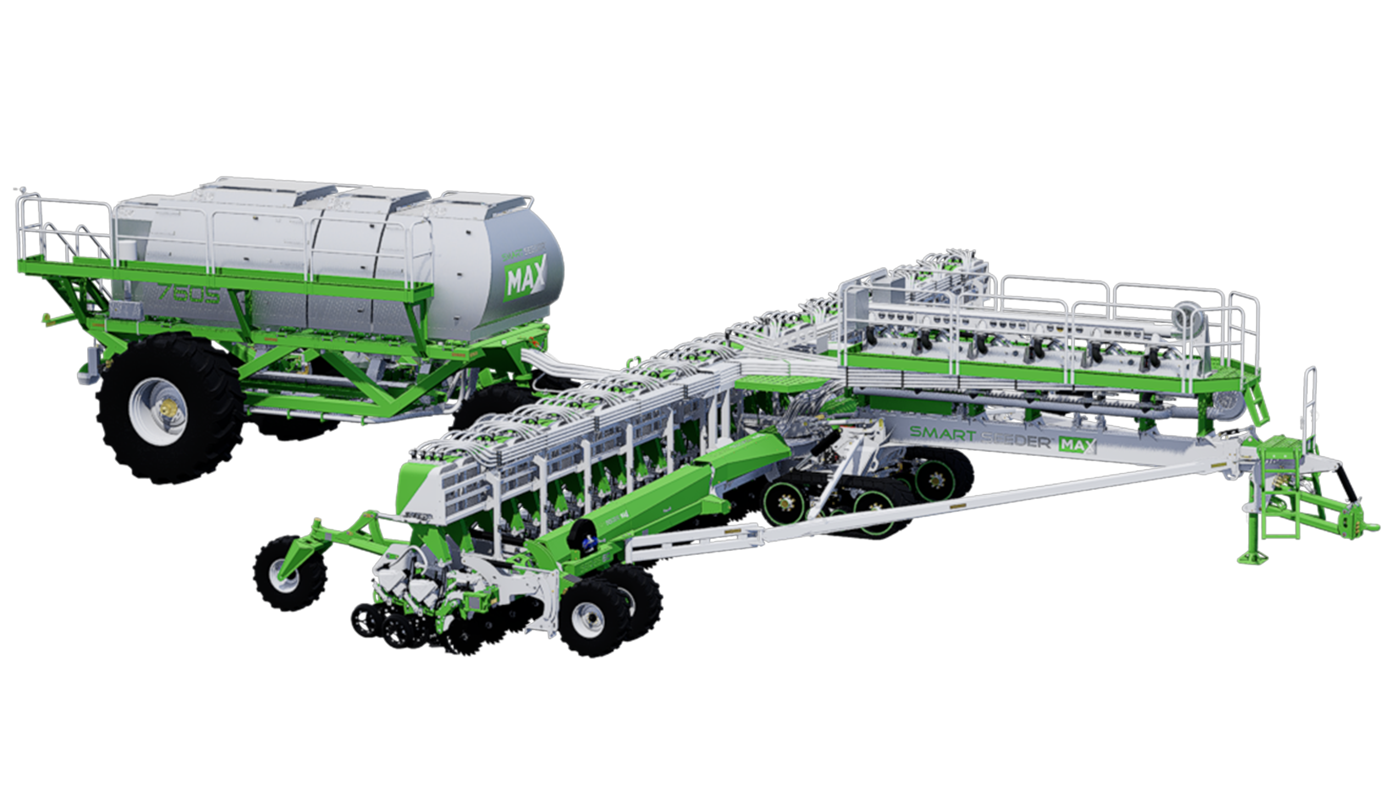

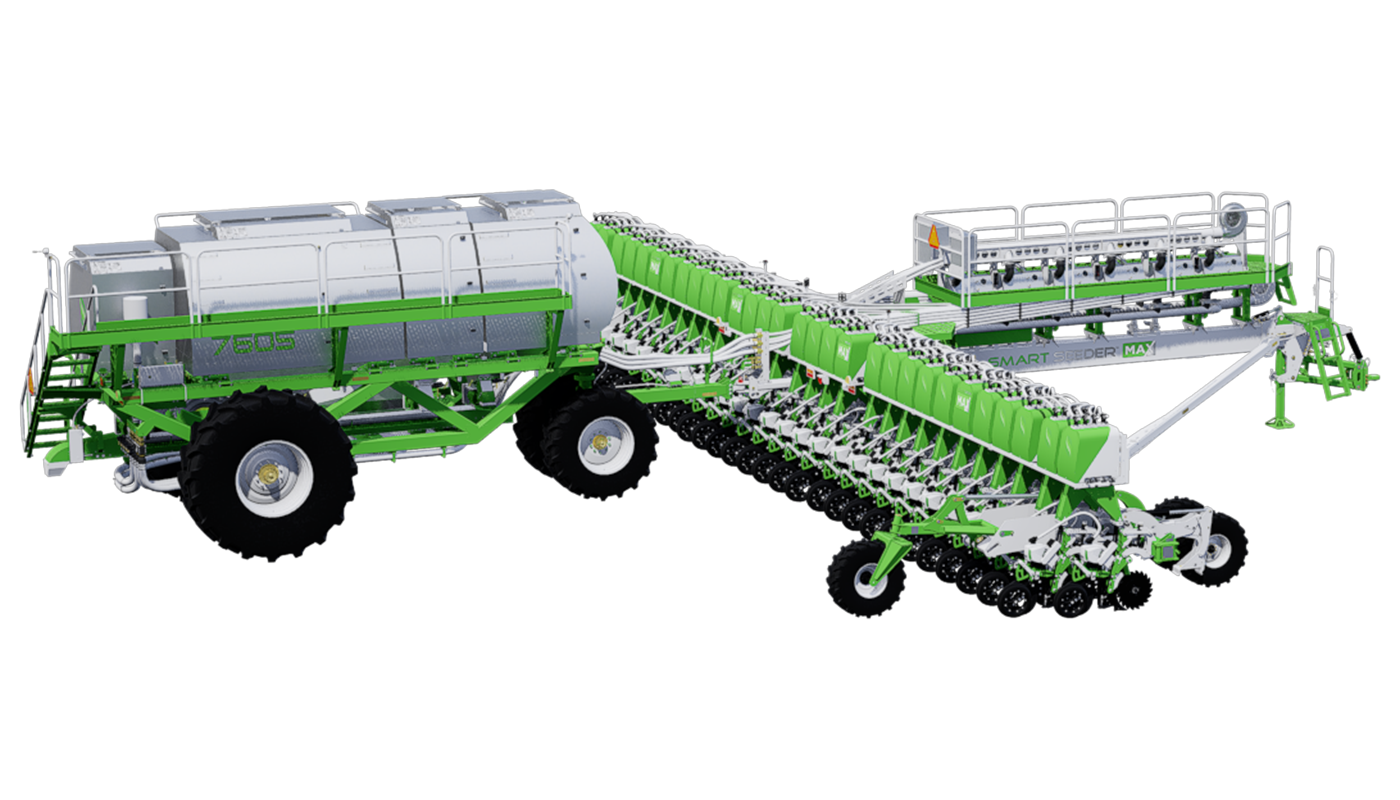

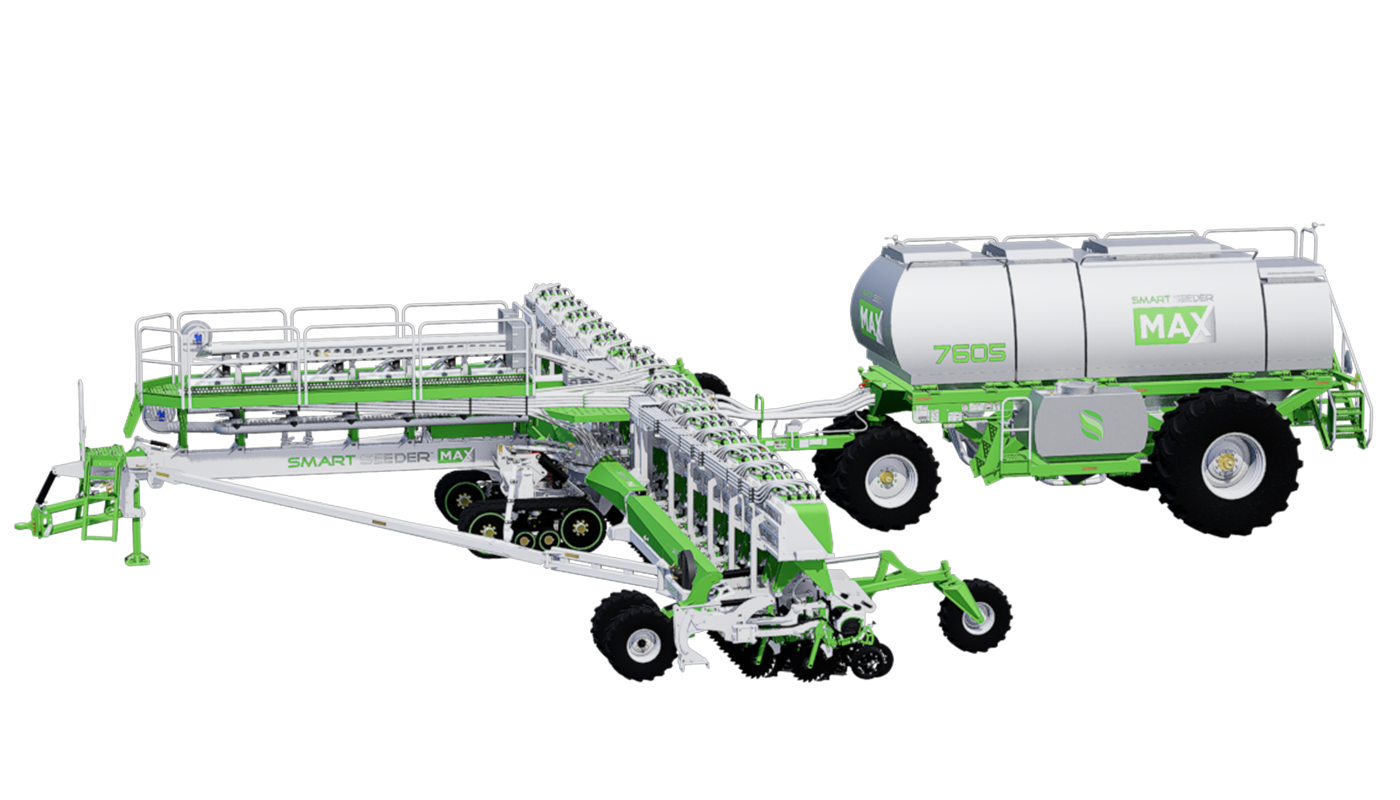

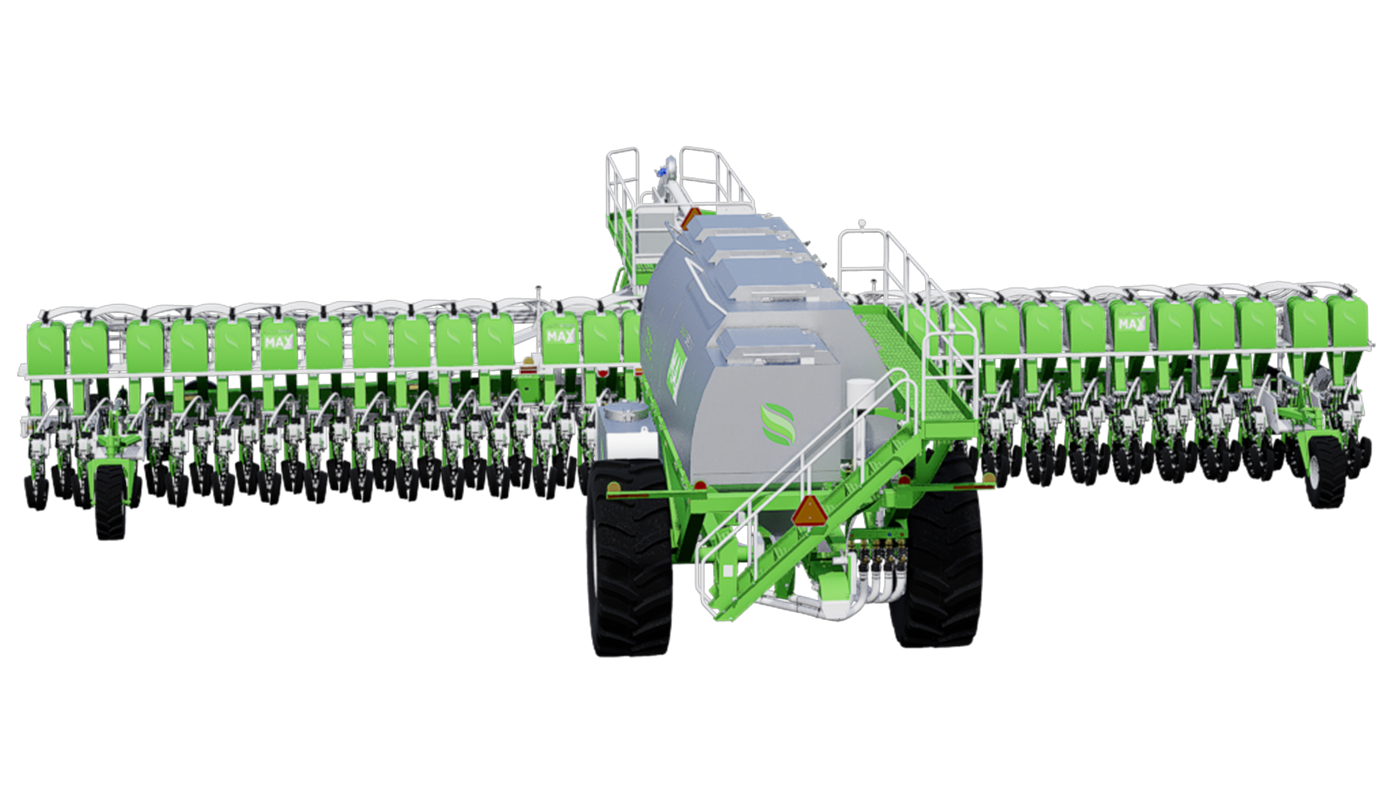

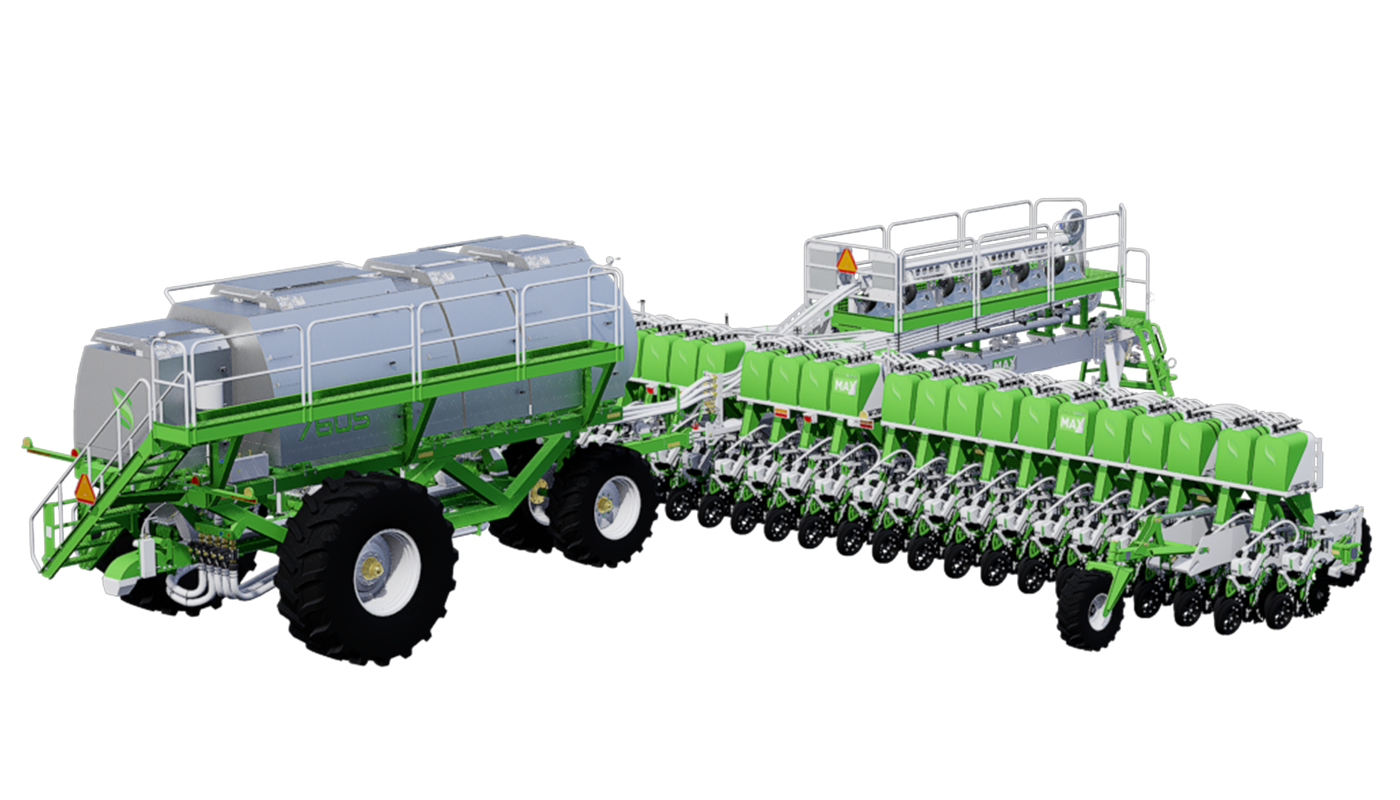

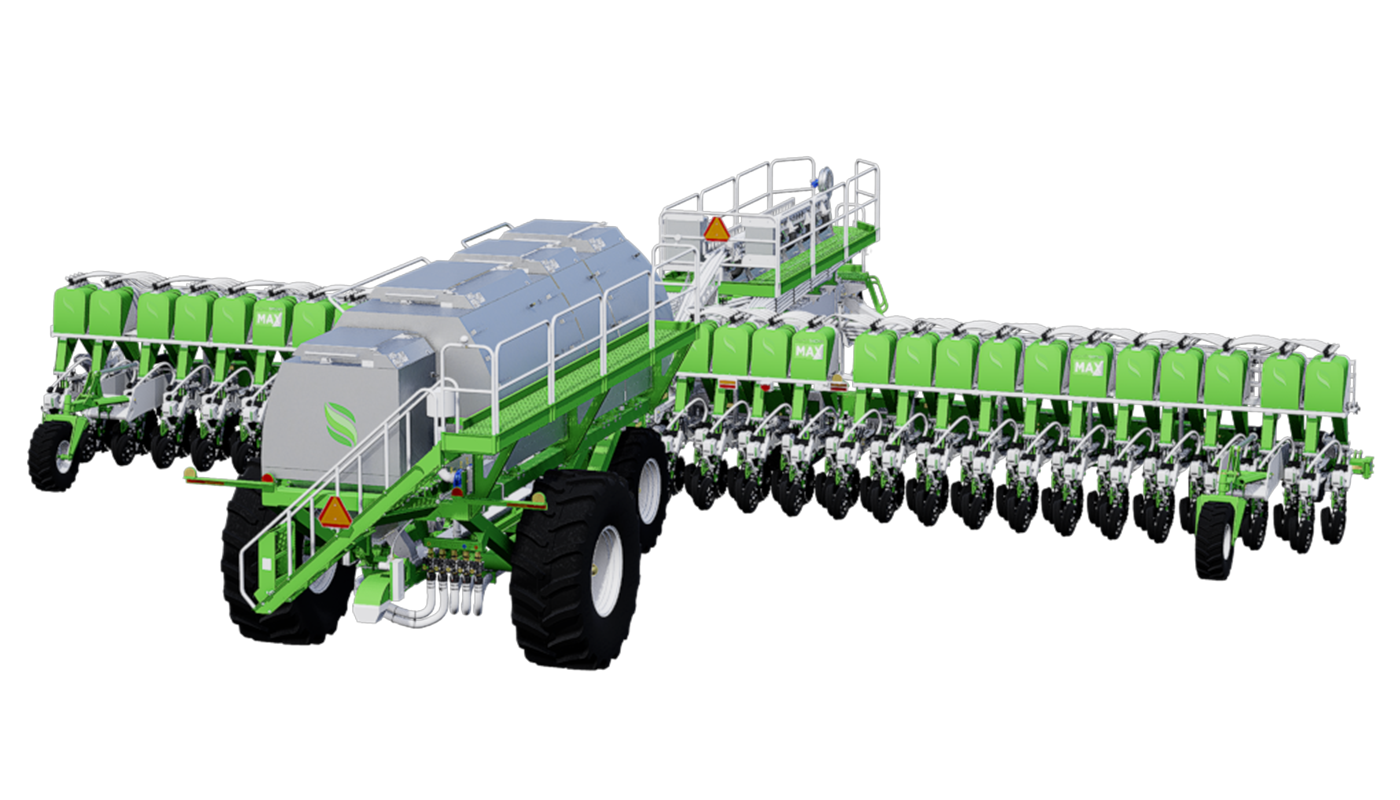

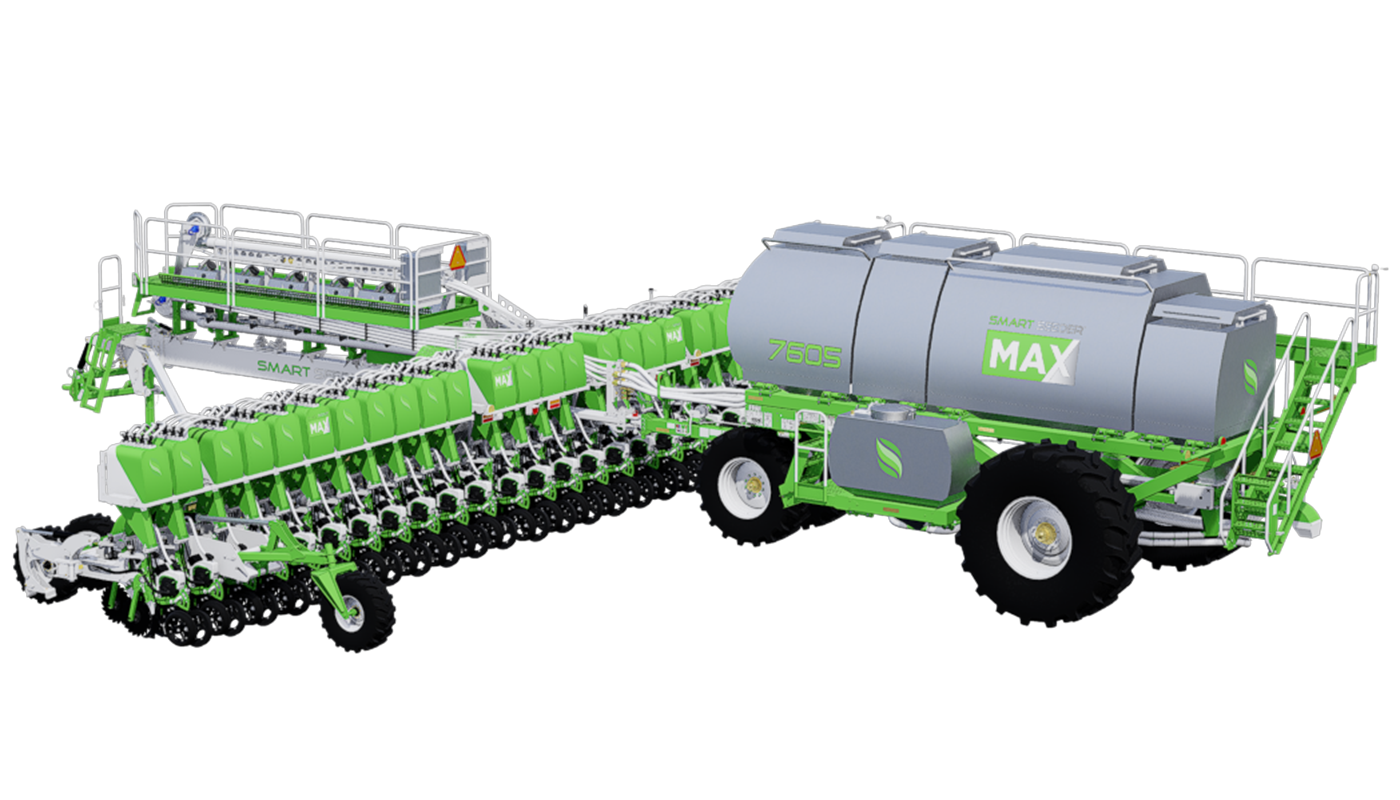

The SMART Seeder MAX-4 is a revolutionary seeding tool that allows producers to place seed, fertilizer, and amendments in a single pass using our DX Opener Coulter/Shank combination. The Series 60 SMART Seeder MAX Seeder offers narrow seedbed utilization with 12” row spacing and a standard 4” paired row on each opener and 4 separate dry product capabilities and 5 product furrow placements.

The SMART Seeder MAX-5 is a revolutionary seeding tool that allows producers to place seed, fertilizer, and amendments in a single pass using our DX Opener Coulter/Shank combination. The Series 60 SMART Seeder MAX Seeder offers narrow seedbed utilization with 12” row spacing and a standard 4” paired row on each opener and 5 separate dry product capabilities and 6 product furrow placements.

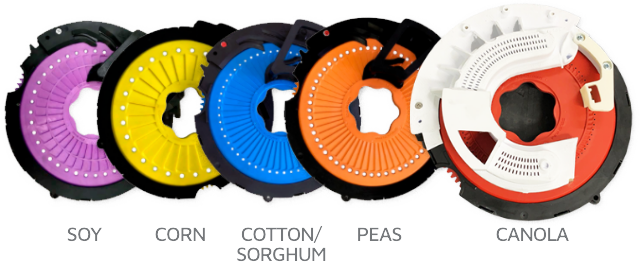

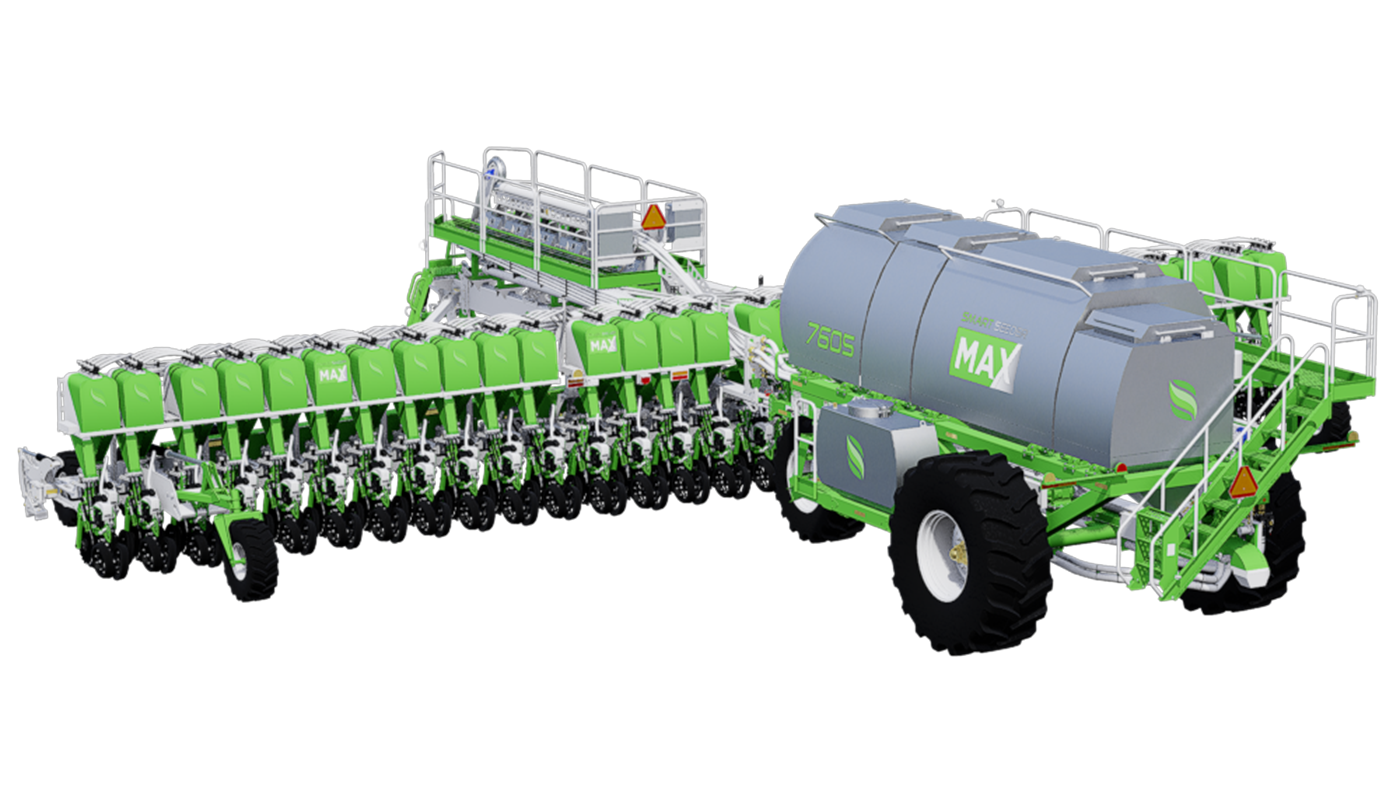

The SMART Seeder MAX-S is a revolutionary planting and seeding tool that allows producers to place seed, fertilizer, and amendments in a single pass using our DX Opener Coulter/Shank combination with both volumetric and singulation metering. The Series 60 SMART Seeder MAX Seeder offers narrow seedbed utilization with 12” row spacing and a standard 4” paired row on each opener and 5 separate dry product capabilities and 6 product furrow placements.

Customize SMART Seeder MAX-4^™

Select Your Options

Select your options and click RESERVE NOW to pay a deposit and reserve your MAX!

A Clean Seed rep will contact you to confirm your requirements and your early adopter price package.

Base Features For

SMART Seeder MAX-4^™

60FT - SERIES 60 TOOL BAR
12” SPACING WITH 4” PAIRED ROW DX OPENER
22” SAW TOOTH COULTER – LONG
(MAX CUTTING ACTION AND WEAR IN MOST CONDITION)
OTICO CAST SPOKE CLOSING WHEELS
4 PRODUCT ROW-BY-ROW VARIABLE RATE CUSHION DRIVE ELECTRIC STEPPER METERS
88” SPACING 24” WIDE SEEDER TRACKS
4 HIGH RATE TOOLBAR MOUNTED MINI TANKS
40 GPM 1000 PTO MOUNTED PUMP TO MAXIMIZE HYDRAULIC FLOW
DUAL RTK INTEGRATED SYSTEM
SEED SYNC SOFTWARE WITH IPAD PRO INTERFACE

7204 BULK TRANSFER CART
720 BUSHEL, 4 COMPARTMENT TANK
(325, 205, 120, 70 BUSHEL)
FOOD GRADE CAST IRON AIRLOCKS
VELOCITY SINGLE POINT UNLOAD CONVEYOR
(MINIMIZING CART UNLOAD TIME DURING CROP CHANGE OVERS OR CLEAN OUT)
STANDARD TIRES
REAR 850 / 70R 38
FRONT 600 / 70R 30
HYDRAULIC LIDS

60FT - SERIES 60 TOOL BAR
12” SPACING WITH 4” PAIRED ROW DX OPENER
22” SAW TOOTH COULTER – LONG
(MAX CUTTING ACTION AND WEAR IN MOST CONDITION)
OTICO CAST SPOKE CLOSING WHEELS
1 PRODUCT ROW-BY-ROW VARIABLE RATE CUSHION DRIVE ELECTRIC STEPPER METER (OPENER MOUNTED)
4 PRODUCT ROW-BY-ROW VARIABLE RATE CUSHION DRIVE ELECTRIC STEPPER METERS
88” SPACING 24” WIDE SEEDER TRACKS
6 HIGH RATE TOOLBAR MOUNTED MINI TANKS
40 GPM 1000 PTO MOUNTED PUMP TO MAXIMIZE HYDRAULIC FLOW
DUAL RTK INTEGRATED SYSTEM
SEED SYNC SOFTWARE WITH IPAD PRO INTERFACE

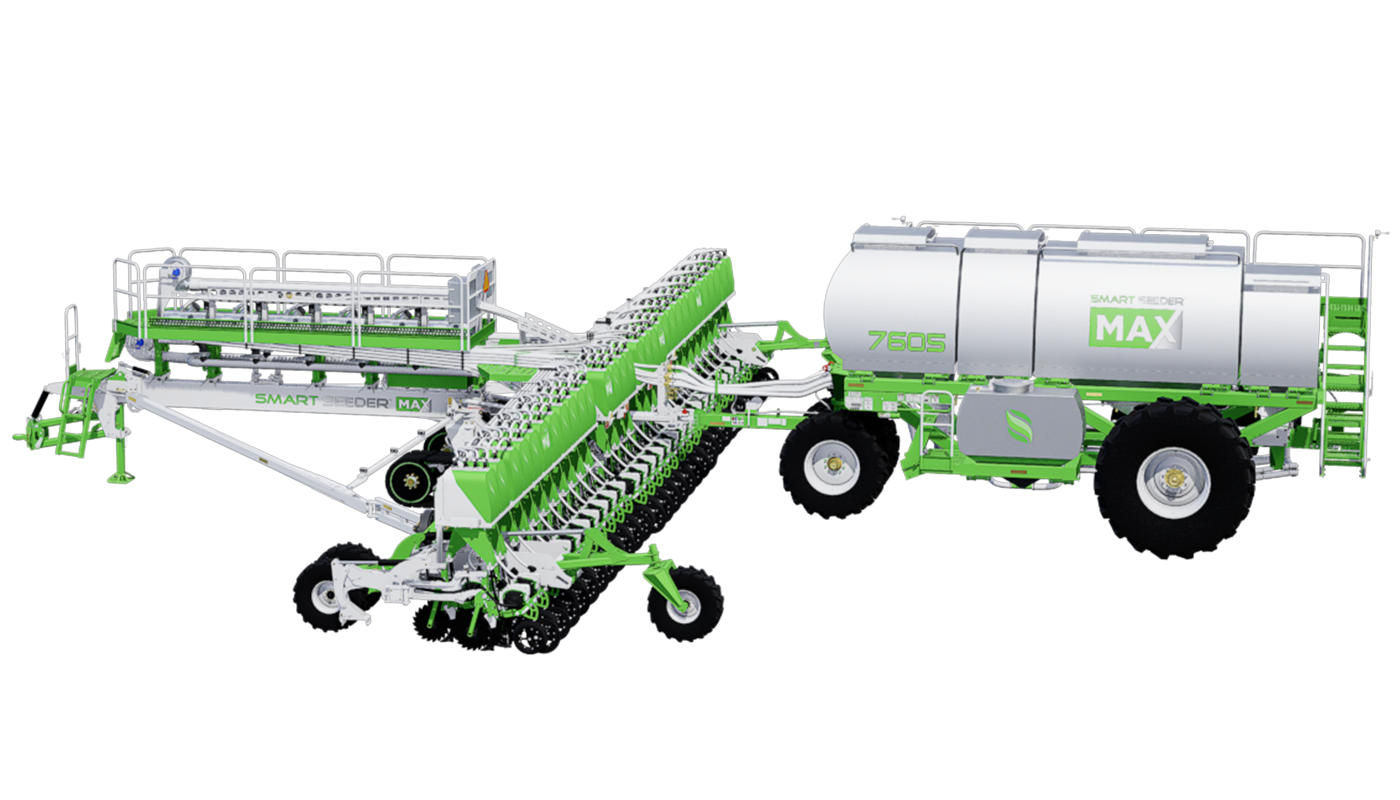

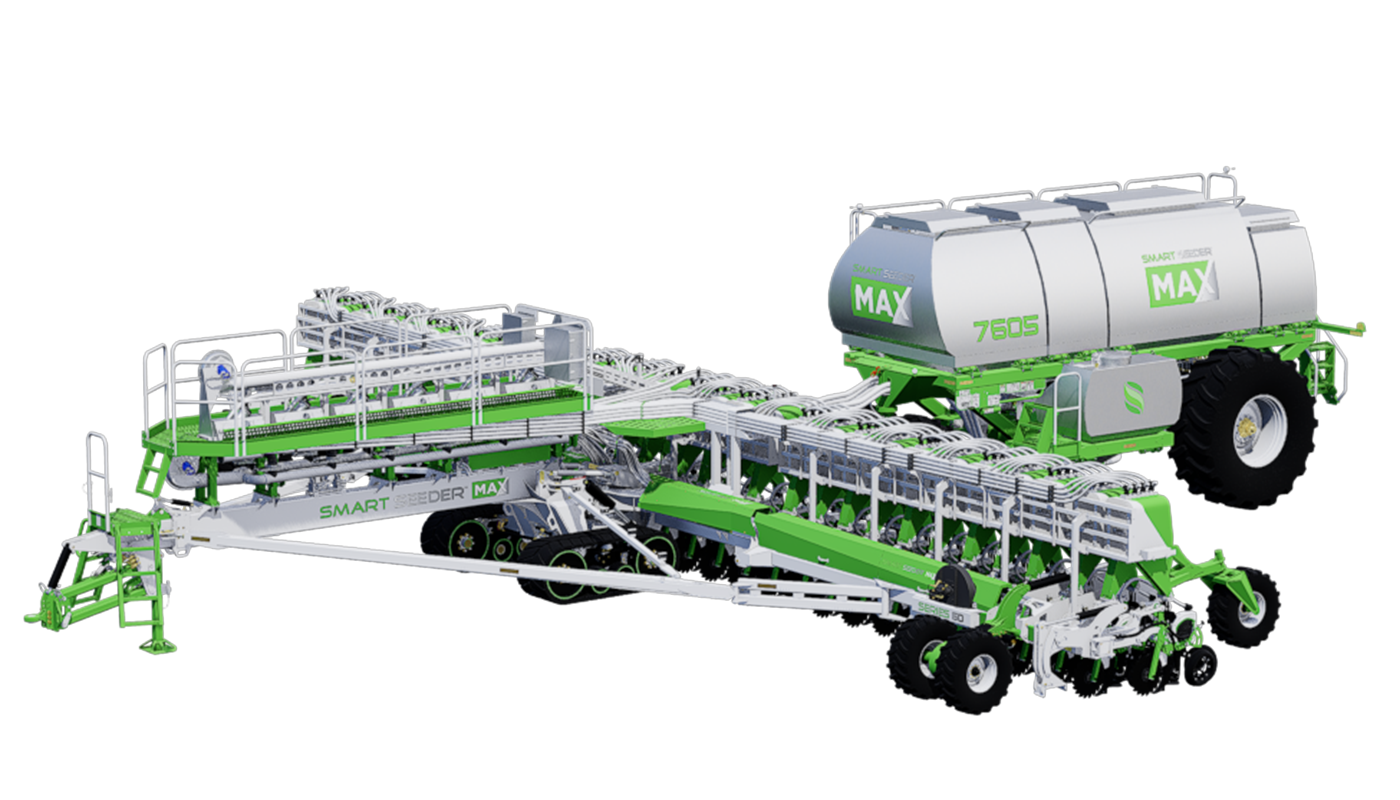

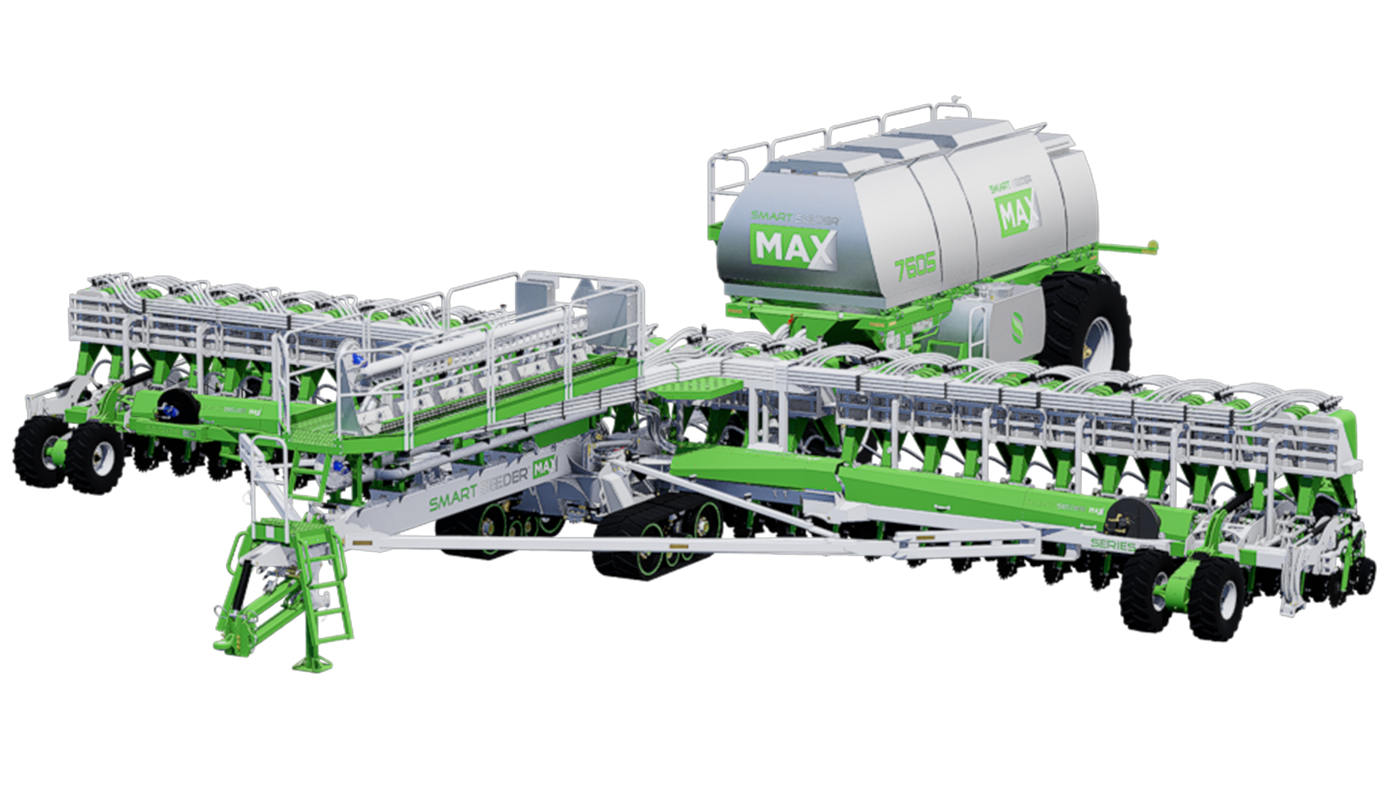

7605 BULK TRANSFER CART
760 BUSHEL, 5 COMPARTMENT TANK
(325, 205, 120, 70, 40 BUSHEL)
FOOD GRADE CAST IRON AIRLOCKS
VELOCITY SINGLE POINT UNLOAD CONVEYOR
(MINIMIZING CART UNLOAD TIME DURING CROP CHANGE OVERS OR CLEAN OUT)
STANDARD TIRES
REAR 850 / 70R 38
FRONT 600 / 70R 30
HYDRAULIC LIDS

60FT - SERIES 60 TOOL BAR
12” SPACING WITH 4” PAIRED ROW DX OPENER
22” SAW TOOTH COULTER – LONG
(MAX CUTTING ACTION AND WEAR IN MOST CONDITION)
OTICO CAST SPOKE CLOSING WHEELS
1 PRODUCT ROW-BY-ROW VARIABLE RATE CUSHION DRIVE ELECTRIC STEPPER METER (OPENER MOUNTED)
4 PRODUCT ROW-BY-ROW VARIABLE RATE CUSHION DRIVE ELECTRIC STEPPER METERS
10 BEAM HIGH RESOLUTION SEED TUBE MOUNTED SEED COUNTER
88” SPACING 24” WIDE SEEDER TRACKS
6 HIGH RATE TOOLBAR MOUNTED MINI TANKS
40 GPM 1000 PTO MOUNTED PUMP TO MAXIMIZE HYDRAULIC FLOW
DUAL RTK INTEGRATED SYSTEM
SEED SYNC SOFTWARE WITH IPAD PRO INTERFACE

7605 BULK TRANSFER CART
760 BUSHEL, 5 COMPARTMENT TANK
(325, 205, 120, 70, 40 BUSHEL)
FOOD GRADE CAST IRON AIRLOCKS
VELOCITY SINGLE POINT UNLOAD CONVEYOR
(MINIMIZING CART UNLOAD TIME DURING CROP CHANGE OVERS OR CLEAN OUT)
STANDARD TIRES
REAR 850 / 70R 38
FRONT 600 / 70R 30
HYDRAULIC LIDS

Tank Specs

SMART Seeder MAX-4^™

SMART Seeder MAX-4,5,S^™ Specs
IN FIELD DIMENSIONS:
WIDTH:61’
HEIGHT: 11’-6”
LENGTH: ~41’-3”
TRANSPORT DIMENSIONS:
FRAME WIDTH: 17’-11.5”
WHEEL BASE WIDTH: 20’- 7.5” (Wing Wheels Up)
POD Y HEIGHT: 11’-8”
WHEEL HEIGHT: 12’-3.5” (Wing Wheels Up)
LENGTH: 49’-2.5” (Hitch Pin to Hitch Pin)
TRACK SPACING: 88”
TRACK WIDTH: 24”
TOOLBAR HEIGHT: 25”
TURNING RADIUS: 27’ (Cart Dependent with Standard 850 70R 38 Rear Cart Tires)
WING FLEX: 14˚ UP, 8˚ DOWN
CURRENT WEIGHT:
MAX-5/MAX-S ~59,000LBS
MAX-4 ~57,000LBS
TONGUE WEIGHT: ~17,000LBS

Bulk Transfer Cart Specs
DIMENSIONS:
WIDTH: 14’-4”
HEIGHT: 13’-6”
LENGTH: 32’-11”
WHEELBASE: 16’-6” (Standart Tire 850 /70R 38)
FRONT TRACK: 4’-0”
REAR TRACK: 11’-6”
STAINLESS STEEL TANKS
SINGLE POINT UNLOAD CONVEYOR - 10” UP TO 100BU/MIN
LOADING CONVEYOR - 10” UP TO 100BU/MIN
7204 TANK SIZES: 720 BU TOTAL
TANK 1: 325 BU / TANK 2: 205 BU / TANK 3: 120 BU / TANK 4: 70 BU
7605 TANK SIZES: 760 BU TOTAL
TANK 1: 325 BU / TANK 2: 205 BU / TANK 3: 120 BU / TANK 4: 70 BU / TANK 5: 40 BU
MAX PRODUCT WEIGHT: 53,000LBS - 7605 CART (With Standard Tires)
MAX PRODUCT WEIGHT: 50,000LBS - 7204 CART (With Standard Tires)
MAX CART WEIGHT: 26,000LBS - 7605 CART (With Loading Conveyor)
CART WEIGHT: 25,000LBS - 7204 CART (With Loading Conveyor)
MAX TOTAL WEIGHT: 79,000LBS - 7605 CART (Recommended Hydraulic Brake Option)
MAX TOTAL WEIGHT: 75,000LBS - 7605 CART
